TM601S The Most Accurate Solution for HVAC System Flow Measurement

Name: TM601S The Most Accurate Solution for HVAC System Flow Measurement
Brand: Flo-Instruments Co., Ltd
SKU: TM601S
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: Flo-Instru

Certification: ISO:9001, CE

Model Number: TM601S

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                HVAC System Flow Measurement, Accurate HVAC System Flow Measurement, TM601S Flow Measurement


Flow Range:	0~17000ml/min	Accuracy:	Valued ±2%
Repeatability:	0.8%	Pipe Diameter Range(Optional):	Φ4～Φ12.7
Measuring Medium:	Regular Water, Sea Water, Cooling/hot Water, Alcohol...	Pipe Material(Optional):	Carbon Steel, Stainless Steel, PVC
Communication Interface:	RS485 Communication Interface, Support Modbus Protocol	Power Supply:	24V DC
Keyboard:	4 Touch Keys	Display:	In-built Backlit OLED 128*64 Dot-matrix Displays

Flow Range:	0~17000ml/min
Accuracy:	Valued ±2%
Repeatability:	0.8%
Pipe Diameter Range(Optional):	Φ4～Φ12.7
Measuring Medium:	Regular Water, Sea Water, Cooling/hot Water, Alcohol...
Pipe Material(Optional):	Carbon Steel, Stainless Steel, PVC
Communication Interface:	RS485 Communication Interface, Support Modbus Protocol
Power Supply:	24V DC
Keyboard:	4 Touch Keys
Display:	In-built Backlit OLED 128*64 Dot-matrix Displays

TM601S The Most Accurate Solution for HVAC System Flow Measurement

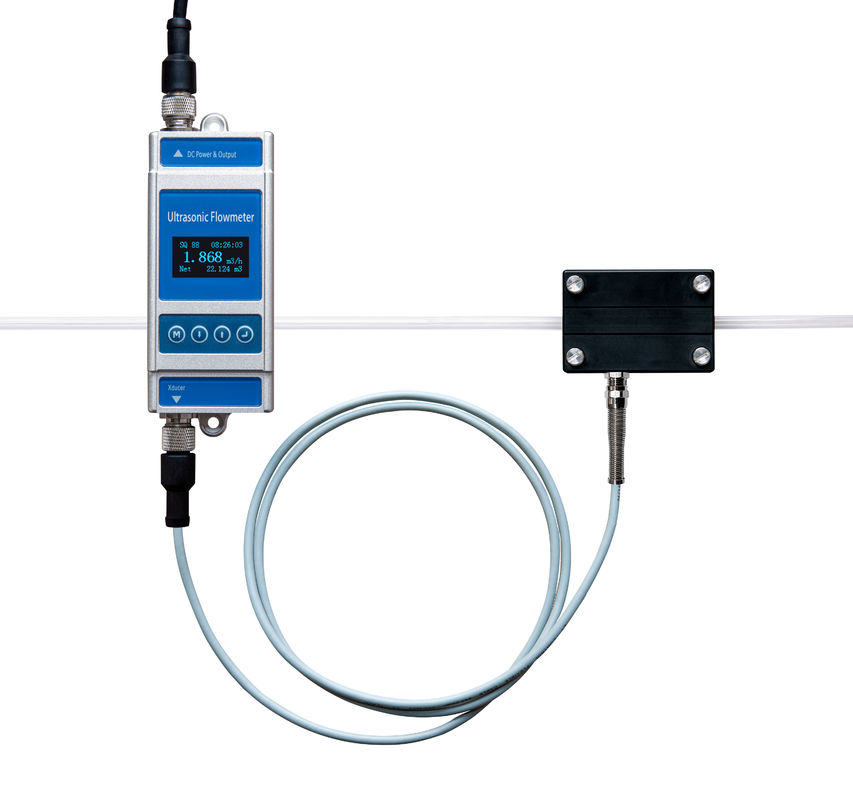

TM601S Clamp-on Ultrasonic Flowmeter

Clamp-on Ultrasonic Flow Meter for Small Pipe Size

Product Description

We focus on the development of flow measurement technology so that our products serve real-time flow measurement in the production process. TM601S is mainly used in medical devices, Biopharmaceutical, semiconductor manufacturing, scientific research, industrial monitoring, food and beverage production and other fields. No additional professional knowledge is required, installation and measurement can be completed according to the operating instructions.

TM601S is clamped on the pipe, and there is no need to modify the pipe correlation measurement structure, which reduces measurement instability and ensures measurement accuracy. The sensor is no direct contact with the liquid in the pipeline and will not cause pollution to the liquid. It is suitable for occasions with high requirements for hygiene and cleanliness, such as liquid flow monitoring in biopharmaceutical processes, medical equipment and semiconductor equipment production etc.

TM601S is widely used in flow measurement and monitoring in production processes. The application of the product allows the fluid flow to be continuously, effectively and accurately controlled while also improving the product yield, thereby saving personnel investment and bringing great benefits to the production enterprise.

TM601S applies the world's most advanced transit-time measurement technology, and the resolution can reach 20ps.

Benefit & Feature

Main menu and choice mode

1.Easy to switch display

2.Easy to set up quickly

OLED display

Read clearly in dark environments

Touch the button

Easy to set up and enter

Reliable aviation connector

Simple wiring

Specifications

Flow Range	0~17000ml/min
Accuracy	±2.0%
Pipe Size	Φ4~Φ12.7
Liquid	Regular water,sea water,cooling/hot water,alcohol..
Pipe Material	PVC,stainless steel,carbon steel,copper.…
Power Supply	24V DC
Communication	Support MODBUS protocol,RS485
Analog Output	4-20mA,Maximum 750Ω
Alarm Output	OCT upper and lower limit alarm function (optional)
Display	OLED 128*64 dot-matrix display screen
Key Panel	Four touch buttons
Flow Unit	Support metric unit selection,Cubic Meters(m³),Liters(l),USA Gallons(gal).
Time Unit	/hour,/min,The factory default unit is cubic meters per hour.
Time Unit	Daily,Monthly,and Annual Flow Totalizer
Temperature	Ambient:32F～+176F(0℃～+80℃)
Temperature	Liquid:32F～+176F(0℃～+80℃)
Ambient Humidity	RH 0～90%,No condensation
Housing Material	Aluminum alloy
Protection Rate	IP54
Cable Length	6.6ft (2m)standard

The Pipe Size Range and Flow Range Reference Table

Product Model	Flow Range	Accuracy	Pipe Outer Diameter	Pipe Inner Diameter
Φ4	0-4000ml/min	0-200ml/min:±6ml/min 200-3000ml/min:±2%	1/8” (4.2mm)	1/ 16” (2. 1mm)
Φ6.35	0-6500ml/min	0-300ml/min:±8ml/min 300-6500ml/min:±2%	1/4” (6.35mm)	1/8” (4.3mm)
Φ8	0-9200ml/min	0-400ml/min:±10ml/min 400-9600ml/min:±2%	5/ 16' (7.9mm)	1/4” (6.4mm)
Φ9.53	0-12600ml/min	0-600ml/min:±16ml/min 600-11000ml/min:±2%	3/8” (9.53mm)	5/ 16” (7.9mm)
Φ12.7	0-17000ml/min	0-1000ml/min:±25ml/min 1000-17000ml/min:±2%	1/2” (12.7mm)	3/8” (9.5mm)

TM601S The Most Accurate Solution for HVAC System Flow Measurement 0

TM601S The Most Accurate Solution for HVAC System Flow Measurement 1

TM601S The Most Accurate Solution for HVAC System Flow Measurement 2

TM601S The Most Accurate Solution for HVAC System Flow Measurement 3
