Product Details
Place of Origin: Shenzhen, China
Brand Name: Flo-Instru
Certification: ISO:9001, CE
Model Number: TM605P
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Conventional Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T
Flow Range: |
0.1m/s ~ ±5m/s(0.328ft/s ~ ±16ft/s) |
Accuracy: |
±1.0% |
Pipe Diameter Range(Optional): |
OD9.53, OD12.7 |
Measuring Medium: |
Water, Sea Water, Oil, Chemical... |
Pipe Material(Optional): |
Stainless Steel Pipe, Carbon Steel Pipe, Copper Pipe, Plastic Pipe... |
Communication Interface: |
RS485, Support Modbus Protocol |
Power Supply: |
24V DC |
Keyboard: |
4 Touch Keys |
Display: |
320*240 Dot-matrix Display Screen |
Flow Range: |
0.1m/s ~ ±5m/s(0.328ft/s ~ ±16ft/s) |
Accuracy: |
±1.0% |
Pipe Diameter Range(Optional): |
OD9.53, OD12.7 |
Measuring Medium: |
Water, Sea Water, Oil, Chemical... |
Pipe Material(Optional): |
Stainless Steel Pipe, Carbon Steel Pipe, Copper Pipe, Plastic Pipe... |
Communication Interface: |
RS485, Support Modbus Protocol |
Power Supply: |
24V DC |
Keyboard: |
4 Touch Keys |
Display: |
320*240 Dot-matrix Display Screen |

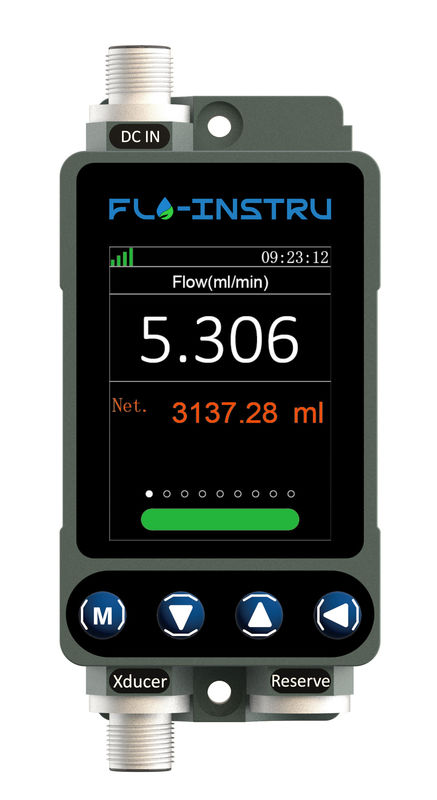

TM605P Ultrasonic Flow Meter
Product Description
Since the product was put on the market, it has been widely used in the cleaning equipment industry. Due to its simple installation and operation, and reliable measurement performance, it has been continuously promoted in new industries.
Main industries: semiconductors, food, medicine, drinking water, detergents, printing and dyeing, chemical products, etc.
Specifications
| Code | TM605P | |
| Accuracy | ±1.0% (0.3m/s 5.0m/s) | |
| Repeatability | 0.3% | |
| Response time | 50ms | |
| Display | 2.4' 320*240 IPS LCD | |
| Language | English, Chinese | |
| Unit | Support metric unit selection, m3/h,LPM,ml/min ,GPM ,LPH. The default flow rate is ml/min. | |
| Totalizer | 7 bit flow rate totalizer | |
| Totalizer Data | 10 years,64 months,64 days | |
| key panel | Four touch buttons | |
| power supply | 24V DC@3W | |
| Analog output | 4~ 20mA , Maximum load:600Ω | |
| Communication | Modbus RS485 | |
| Alarm output | OCT Upper and lower limit alarm function | |
| Relay output | 30V DC@1A, Switching frequency less than 2Hz(optional) | |
| IP Protection | IP65 | |
| Pipe size | OD3~OD12.7 | |
| Sensor Body Material | UPVC, PFA(optional) | |
| Ambient temperature | -10℃~60℃ | |
| Fluid temperature | -10℃~50℃ | |
| Ambient humidity | RH 0~95%,No condensation | |
| Viscosity | Less than 300CST(mm2/s) | |
| Cable length | 2.0m (The cable length could be extend up to 20m) | |
Product Dimension
